NTC 3950 100k Thermistor high temperature Thread Hex Screw

Ask Lasest Price
Brand Name :	Shinein
Model Number :	Epoxy Thermistor
Certification :	CE IOS ROHS SGS
Price :	Negotiate
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	50 Million Pieces Per Year
Delivery Time :	7-10 work days

Add to Cart

Product Details
Company Profile

NTC 3950 100k Thermistor high temperature Thread Hex Screw

Thread Hex Screw 10K NTC Temperature Sensor With Stainless Steel Sensor Probe

Main Techno-Parameters
Specific Drawings & dimensions & specifications & parameters can be custom-made; feel free to contact us!
Rated Zero Power Resistance(R25℃)	0.1k ohm ~ 1000k ohm
Allowable tolerance of R25℃	±1%, ±2%, ±3%, ±5%, ±10%
Range of Beta Value (B25/50℃)	3100 ~ 4500 k
Thermal time constant	≤ 12 s (in still air )
Rated Power	≤ 50 mW
Operating Temperature	-45℃ ~ +150℃

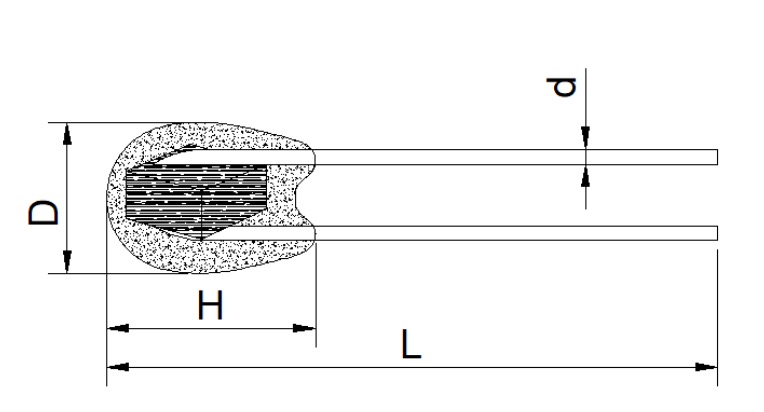

unit:mm

Code	Dmax	L1max	L2min	d ± 0.05	F ± 0.5
A1	2.5	4.0	25	0.3	1.7
A2	3	4.5	25	0.45	2.2

Characteristics
Steady operation for long period	High testing precition
Good coherence and interchange	Wide range of resistance
Easy for auto-installation	Small size, Strong frame, light weight

Our services

1. Good quality is assured by advanced manufacturing technique.
2. All products will be checked by our quality-control department.
3. Customized design. OEM & ODM is accepted.

Advantages

1. Small quantity is accepted.
2. Well and strict quality control.
3. We have series ex-factory tests before shipment, such as pulling test, high & low temperature test, drop test, temperature cycling experiment etc.
